Team Updates

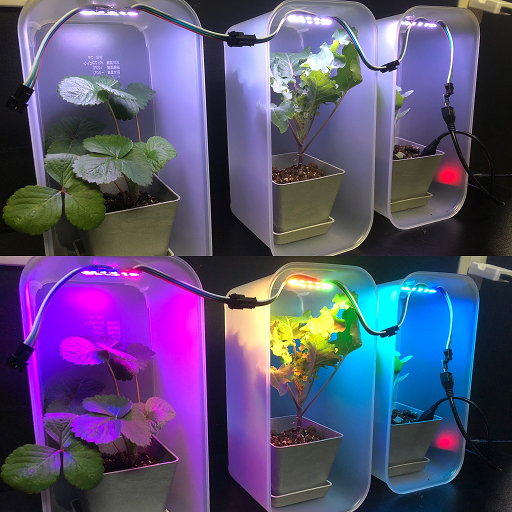

The code below will give you a kit like this one.

Sayako Hamada

	#include<Adafruit_NeoPixel.h>//Adafruit Neo Pixel by Adafruit
	#include<WiFi.h>
	#include<HTTPClient.h>
	#include<OneWire.h>//library manager
	#include<DallasTemperature.h>

	#defineLED_PIN26//outa26 outb13
	#defineNUMPIXELS48

	#definesensorPin13//INA:33 INB:32
	float moisture = 0;
	float sensorValue = 0;

	#defineONE_WIRE_BUS33//INA:33 INB:32
	#defineSENSER_BIT9// Precision setting bit

	#definecdsPin32//INPUTA:33 INPUTB:32
	float lux = 0;

	// SSID and password to connect to
	constchar* ssid = "xxxxxxxxx";
	constchar* password = "xxxxxxxxxxxx";

	//Your Domain name with URL path or IP address with path
	String serverName = "https://script.google.com/macros/s/AKfycbxINUMbng44NUpPhd0qqhrnGlyVRLVDwJKj8UMs2Ms7cZ5cy4UigcCFkI6jcONmmwQX/exec";

	// the following variables are unsigned longs because the time, measured in
	// milliseconds, will quickly become a bigger number than can be stored in an int.
	unsignedlong lastTime = 0;
	// Timer set to 10 minutes (600000)
	//unsigned long timerDelay = 600000;
	// Set timer to 5 seconds (5000)
	unsignedlong timerDelay = 5000;

	Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, LED_PIN, NEO_GRB + NEO_KHZ800);

	OneWire oneWire(ONE_WIRE_BUS);
	DallasTemperature sensors(&oneWire);

	voidsetup() {
	pixels.begin();
	Serial.begin(115200);
	pinMode(sensorPin, INPUT);
	sensors.setResolution(SENSER_BIT);
	pinMode(cdsPin, INPUT);
	connectWiFi();
	}

	voidloop() {
	sensorValue = analogRead(sensorPin);
	moisture = sensorValue / 2224 * 100; //Initial value 2224. Value read by analog reading in water.
	Serial.print(moisture);
	Serial.println("%");

	sensors.requestTemperatures(); // Temperature acquisition request
	Serial.println(sensors.getTempCByIndex(0)); //Temperature acquisition & serial transmission

	float cds_ad = analogRead(cdsPin);
	float cds_v = cds_ad * 3.3 / 4096;
	lux = 10000 * cds_v / (3.3 - cds_v) / 1000;

	Serial.print(lux);
	Serial.println(" Lux ");

	sendData();

	uint16_t i, j, k;

	for(i=0; i<NUMPIXELS; i++){
	pixels.setPixelColor(i,pixels.Color(60,60,60));
	}
	pixels.show();
	delay(10000);

	for(k=0; k<4; k++){
	for(j=0; j <256; j++) {
	for(i=0; i < pixels.numPixels(); i++) {
	pixels.setPixelColor(i, rotateColor((((i) * 256 / pixels.numPixels()) + j) & 255));
	}
	pixels.show();
	delay(1);
	}
	}
	}

	//RGB color transition function
	uint32_trotateColor(byte WheelPos) {
	if(WheelPos < 85) {
	return pixels.Color(WheelPos * 3, 255 - WheelPos * 3, 0);
	} elseif(WheelPos < 170) {
	WheelPos -= 85;
	return pixels.Color(255 - WheelPos * 3, 0, WheelPos * 3);
	} else {
	WheelPos -= 170;
	return pixels.Color(0, WheelPos * 3, 255 - WheelPos * 3);
	}
	}

	//Connect to WiFi
	voidconnectWiFi(){
	WiFi.begin(ssid, password);
	Serial.println("Connecting");
	while(WiFi.status() != WL_CONNECTED) {
	delay(500);
	Serial.print(".");
	}
	Serial.println("");
	Serial.print("Connected to WiFi network with IP Address: ");
	Serial.println(WiFi.localIP());

	Serial.println("Timer set to 5 seconds (timerDelay variable), it will take 5 seconds before publishing the first reading.");
	}

	//Transmission of measurement data
	voidsendData(){
	//Send an HTTP POST request every 10 minutes
	if ((millis() - lastTime) > timerDelay) {
	//Check WiFi connection status
	if(WiFi.status()== WL_CONNECTED){
	HTTPClient http;

	String serverPath = serverName + "?data1=" + moisture + "&data2=" + sensors.getTempCByIndex(0) + "&data3=" + lux;

	// Your Domain name with URL path or IP address with path
	http.begin(serverPath.c_str());

	// Send HTTP GET request
	int httpResponseCode = http.GET();

	if (httpResponseCode>0) {
	Serial.print("HTTP Response code: ");
	Serial.println(httpResponseCode);
	String payload = http.getString();
	Serial.println(payload);
	}
	else {
	Serial.print("Error code: ");
	Serial.println(httpResponseCode);
	}
	// Free resources
	http.end();
	}
	else {
	Serial.println("WiFi Disconnected");
	}
	lastTime = millis();
	}
	}

view raw SpaceAppsKizuna.ino hosted with ❤ by GitHub

Sayako Hamada

We are sunbathing these plants that worked hard during the hackathon.
